Professionally supply advanced ceramic products and related solutions: BN, AlN, Si3N4, SiC, BeO, Al2O3 and ZrO2 etc.
4 Years
| Ask Lasest Price | |
| Brand Name : | Cersol |
| Payment Terms : | T/T IN ADVANCE |
Applications
Nano sand mill, conveying equipment, conveying pipeline, etc
Features
● High wear resistance
● High corrosion resistance
● High oxidation resistance
● Thermal shock resistance
● Long life
● High thermal conductivity, good thermal conductivity
● Strength does not change in high temperature environment
● Fast molding, high yield, no pollution
● Small density, light weight
Precision machining
1. High-pure silicon powder
2. Democratic processing: dry forming, waiting for static pressure
molding, grouting molding.
3. Machining: graphic grinding, outer diameter / internal diameter
grinding, refined carving machine processing, grinding, polishing
grinding.
Silicon Carbide Material Report
| Silicon Carbide Material Report | Purity | 99% |
| Color | black | |
| Desity(g/cm3) | 3.16 | |
| Water absorption | 0 | |
| Modules of Elasity(GPa) | 450 | |
| Compressive Strength(MPa) | 224 | |
| Flexural strength(MPa) | 400 | |
| Poisson's ratio | 0.14 | |
| Vickers Hardness(MPa) | 30 | |
| Maximum use Temprature(℃) | 1600 | |
| Thermal Expansion Coefficient (1/℃x 10-6)-RT 500℃ | 3.9 | |
| Thermal Expansion Coefficient (1/℃x 10-6)-RT 800℃ | 4.3 | |
| Thermal Conductivity(W/m·k) | 40 | |
| Thermal Shock Resistance(Δt ℃) | 300 | |
| Volume resistivity(25℃) | 3X106 | |
| Dielectric Constant | 10GHz |

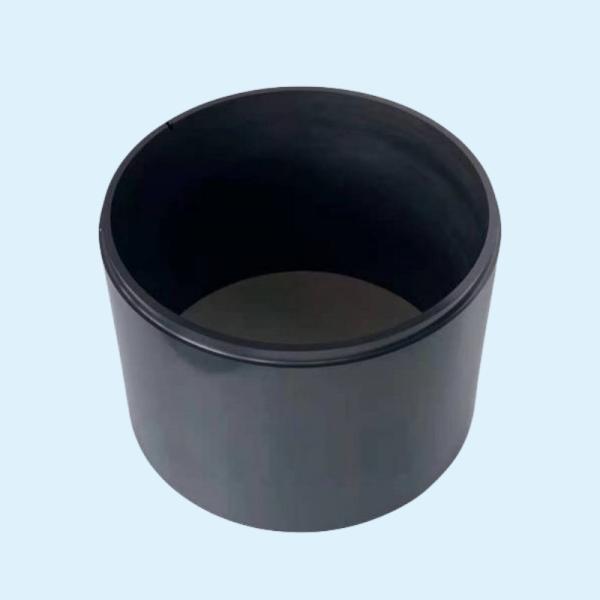

The silicon carbide wear-resistant barrel body is factory for strict size and surface fluorescence penetration testing. The density of silicon carbide wear-resistant barrel is greater than 3.14g/cm3, and the Vickers hardness is above 23GPa, which is highly wear-resistant. The silicon carbide wear-resistant barrel material has passed TUVFDA certification, which can meet the requirements of food-grade media transportation.
|
|
