Specification

Specification of Aluminum Nitride Substrates
Description	Aluminum nitride ceramic substrate has excellent thermal conductivity, lower dielectric constant and medium loss, reliable insulation performance, excellent mechanical properties, non-toxic, high temperature resistance, chemical corrosion. It is widely used in different areas such as communication devices, high brightness LEDs, and electronic electronic devices. It is an electronic ceramic material with excellent performance.
Advantages	(1) It has a high thermal conductivity(＞200w), which is 5-10 times than that of alumina ceramics. (2) The thermal expansion coefficient (4.3x10-6/℃) matches semiconductor silicon material (3.5-4.0x10-6/℃). (3) Good mechanical properties, bending strength higher than BEO ceramics, close to alumina. (4) Excellent electrical performance, high insulation resistance and low medium loss. (5) The circuit material is compatible with good compatibility, and multi-layer wiring can be performed to achieve the high density and miniaturization of the packaging. (6) Non-toxic, which is conducive to environmental protection.
Materials Properties	C-ALN-200
	Color		Grey and White
	Density		g/cm3	≥3.0
	Surface Roughness Ra		μm	0.300-0.600
	Flexural Strength		MPa	＞320
	Camber		Length‰	≤2
	Thermal Conductivity		25℃, W/(m·k)	≥200
	Coefficient of Thermal Expansion		10-6/K(40-400℃)	4.0-5.0
			10-6/K(40-800℃)	3.5x10-6
	Dielectric Constant		kv/MN	17
	Volume Resistance		25℃,Ω·cm	≥1014
Remarks: Above values are typical and not for specification.
Size	Thickness		Length*Width
	0.381mm		50.8*50.8mm 110*110mm 114.3*114.3mm 120*120mm 127*127mm 139*190mm
	0.500mm
	0.635mm
	1.0mm
	1.5mm
Applications	LED package
	Power resistance ceramic base board
	Ultra-power laser semiconductor LD

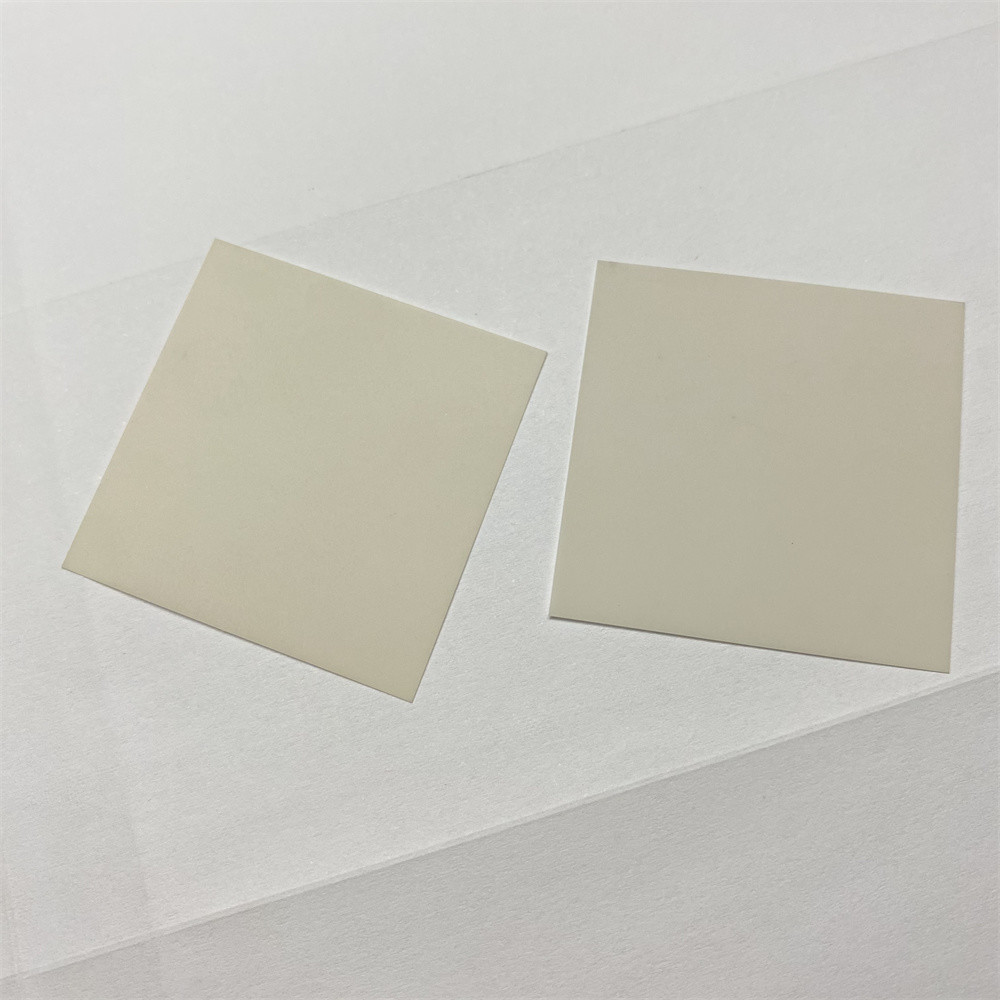

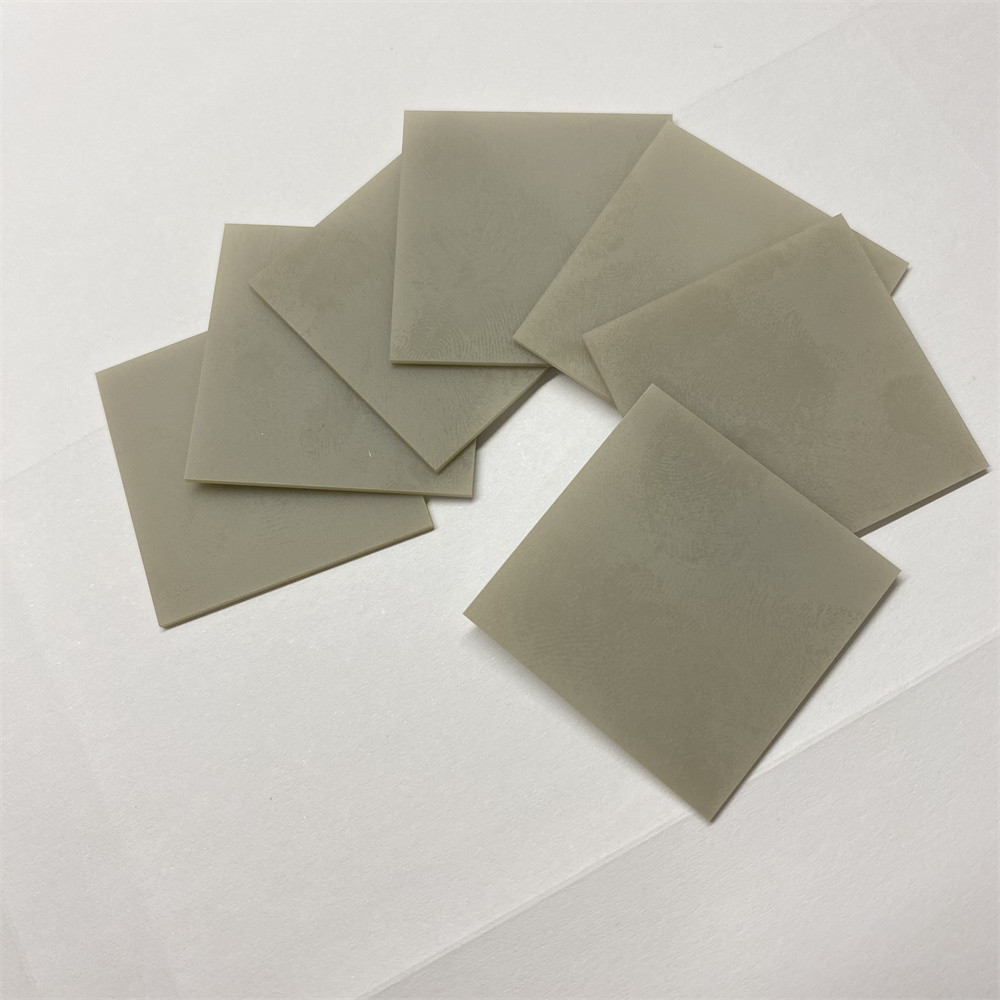

Pruduct Show
